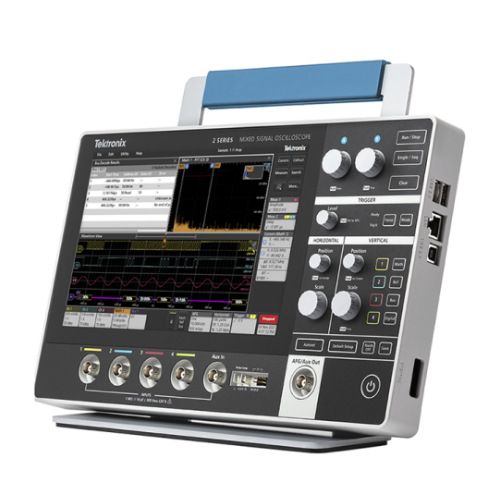

2 Series Mixed Signal Oscilloscope Datasheet

Analog input channels
2 or 4 inputs
Bandwidth
70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz
Sample rate
• 2.5 GS/s half channels
• 1.25 GS/s all channels
Record length
10 M points per channel
Vertical resolution
• 8 bits ADC
• Up to 16 bits in high-resolution mode
Standard trigger types
Edge, pulse width, runt, timeout, logic, setup & hold, rise/fall time, and
parallel bus
Standard analysis
• Cursors: Waveform, V bars, H bars, and V&H bars
• Measurements: 37
• Plots: XY, limit mask
• Math: Basic waveform arithmetic, FFT, and advanced equation
editor
• Search: Search on any trigger criteria
Serial trigger, decode and analysis (optional)
I
2C, SPI, RS-232/422/485/UART, CAN, CAN FD, CAN XL, LIN, and
SENT
Digital input channels (optional) 16 inputs

---
