Laser Tracker Reflector & Accessories

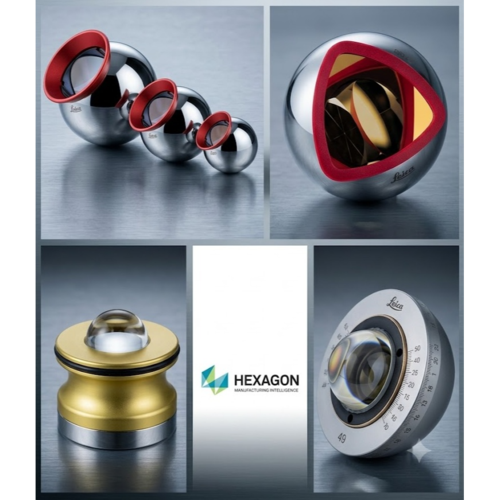

Red Ring Reflector (RRR) - 1.5 inches, 7/8 inches, 0.5 inches;
Stainless steel, surface-hardened, magnetic corner-cube reflector with removable ring, protective cover for optics and certificate .
Centering of optics Less than +0.003 mm, Roundness(ball) ≤0.003 mm, Acceptance angle +/- 30 degree;

Break Resistant Reflector (BRR) - 1.5 inches;
Stainless steel, surface-hardened, magnetic reflector with collar protection cover for optics and certificate.
Centering of optics Less than +0.010 mm, Roundness(ball) ≤0.0015 mm, Acceptance angle +/- 30 degree;

Super CatEye Reflector (SCE)
Stainless steel, surface-hardened, magnetic reflector with ultra-wide acceptance
angle of +/- 75degree; from vertical around a full 360-degree field of view.
Centering of optics Less than +0.005 mm, Roundness(ball) ≤0.003 mm, Acceptance angle +/- 75 degree;

Super Cateye Reference Target (SCRT)
Aluminum with samarium-cobalt magnet reflector with ultra-wide acceptance angle of +/- 75 degree;
from vertical around a full 360-degree field of view, embedded in a magnetic target base with magnetic shielding for transportation and storage.
Mechanical adaptation of the SCRT can be established using the 6 mm M4 center bore hole.

---
